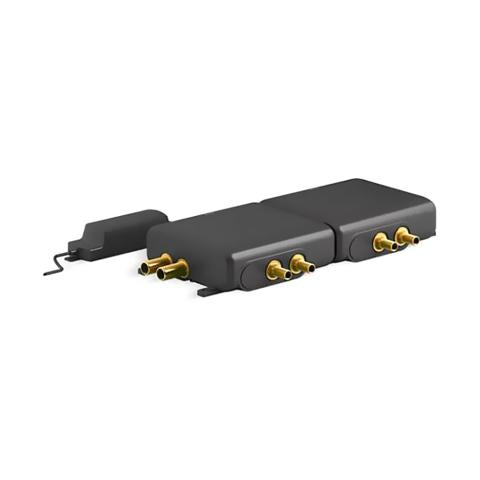

Kohler Anthem Four-port digital thermostatic valve
Kohler Anthem Four-port digital thermostatic valve is backordered and will ship as soon as it is back in stock.
Description
Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Its easy plug-and-play design makes installation a breeze. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve. As an extra safety feature this valve has antiscald protection.
Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. This valve is ideal for applications where four shower outlets are required, offering two different temperature and flow zones.
Features
-
Digitally controlled thermostatic mixing valve.
-
Antiscald protection.
-
Built-in temperature and flow control.
-
Allows for two different temperature and flow zones in your shower.
-
Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.
-
Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet.
-
Four independently controllable 1/2" outlets with brass tube connections.
-
Reinforced engineering-grade thermoplastic body.
-
Mounts within standard 2" x 4" (38 x 102 mm) walls.
-
Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control).
-
Prewired with two-prong plug for connection to 120v GFCI receptacle.
Includes
-
Anthem Digital Control
-
Filter Screens (Qty 2)
-
Jumper
-
Mounting Hardware
-
Power Supply Unit
Specifications
|
Model |
K-28211-NA |
|
Construction Material |
Reinforced engineering-grade thermoplastic body |
|
Mount |
Wall |
|
Voltage |
120 |
|
Amperage |
1.0 Amps |
|
Hertz |
60Hz |
|
UL Rated |
Yes |
|
NPT Inlet |
3/4" |
|
NPT Outlet |
1/2" |
|
Width |
20-3/8" (518mm) |
|
Depth |
8-1/4" (210mm) |
|
Height |
3" (76mm) |
