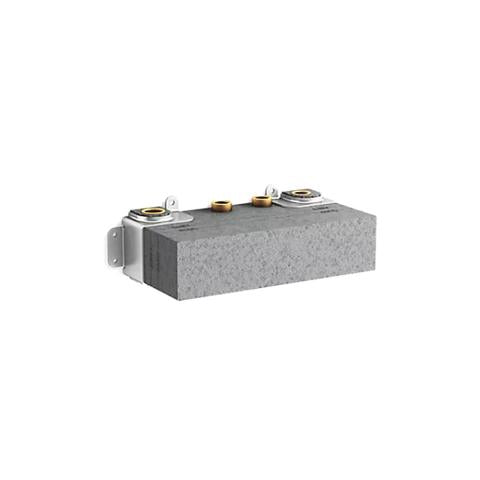

Kohler Anthem, Three-port thermostatic mixing valve

Description

This valve is ideal for applications where three shower outlets are required, offering two different temperature and flow zones. Eco mode is an optional built-in feature that lets you use just one outlet at a time to conserve water. As an extra safety feature this valve has antiscald protection.

Kohler Anthem Digital thermostatic technology gives precise, accurate, and consistent temperature and flow control for the perfect shower experience. Designed for use with the Anthem digital control it is precision-engineered, best-in-class digital thermostatic valve.

Features

• High-flow thermostatic mixing valve.

• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience.

• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with a maximum flow of 7 gpm (26.5 lpm) from one outlet.

• ¾" female NPT inlet connections.

• ½" female NPT outlets.

• Service stops with integral filters.

• Antiscald protection.

• Integrated adjustable high-temperature limit stop to control maximum water temperature.

• Adjustable comfort setting (preset at approximately 104°F).

• Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.

• Cast dezincification-resistant brass body provides long-term reliability and resistance to aggressive water conditions.

• Requires three-outlet thermostatic valve control panel trim with recessed push buttons (sold separately).

• Mounts within standard 2" x 4" (38 x 102 mm) walls.

• Fully serviceable from the front of the valve.

Includes

• Anthem Three-port thermostatic valve with volume control
