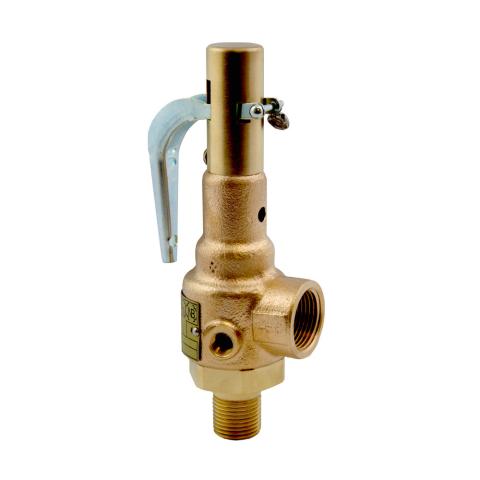

Mr.Steam Valve, Safety, 15 PSIG, 1", CU4500
Mr.Steam Valve, Safety, 15 PSIG, 1", CU4500 is backordered and will ship as soon as it is back in stock.
Description
If for some reason the generator builds up to 15 pounds of pressure (which is extremely rare), the valve will pop open and relieve the pressure.
The Mr.Steam 15 PSIG Safety Valve 1" Outlet is required as a safety pressure control on CU Commercial Steam Shower Generator CU4500. This valve would typically be piped to a floor drain in the generator installation area.
This valve should be inspected routinely along with all additional components during your routine maintenance schedule.
One (1) 15 PSIG Safety Valve 1" per steam generator.
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
Specifications
| Model | 99141 |
|---|---|
| Shipping Weight | 1 lb |
| Inlet | 1" NPT |
| Outlet | 1" NPT |
| Capacity | 484 (lbs/hr) |
| Operating Pressure | 15 psi |
| ASME stamp | V |
