MrSteam CX0360 thru CX1000 Health Club Steam Shower Generator Package
MrSteam CX0360 thru CX1000 Health Club Steam Shower Generator Package - 9kW / 208V/1PH (Commercial Use) is backordered and will ship as soon as it is back in stock.
Description
The Mr.Steam CX Generator Package is the next generation of steam power. Ideal for large health club and spa facilities, the CX Generator Package is designed for steam rooms with dimensions up to 1,000 cubic feet (CF).
The CX Generator is engineered for peak performance and offers quieter power, ease of installation, and an advanced touch-screen control.

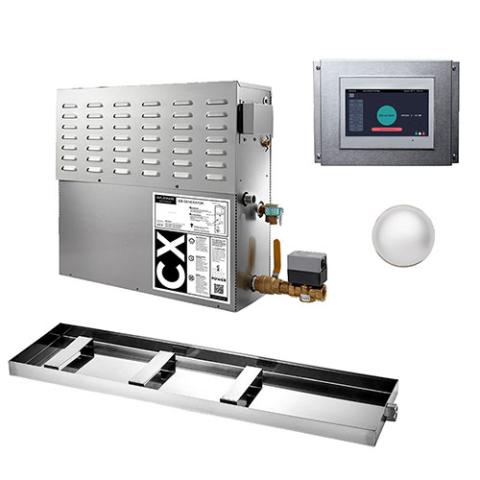

You get everything you need to create the perfect steam experience with the combination of a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory-installed AutoFlush System. The result is a touchpoint experience that becomes memorable, revitalizing, and ultimately more gratifying.
Features

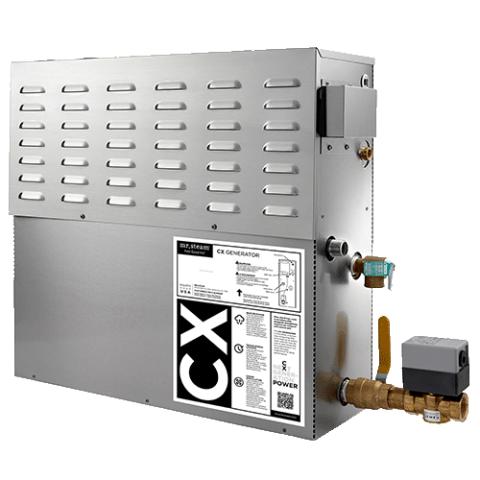

CX Generator
-
Industrial-grade, large diameter, serviceable heating element
-
Electronic water-level control system
-
Stainless steel jacket prolongs life
-
Quieter than a pressurized system
-
Program to preheat the steam room at the start of each day
-
Internal temperature shut-off to prevent low water conditions and integral high water cut-off
-

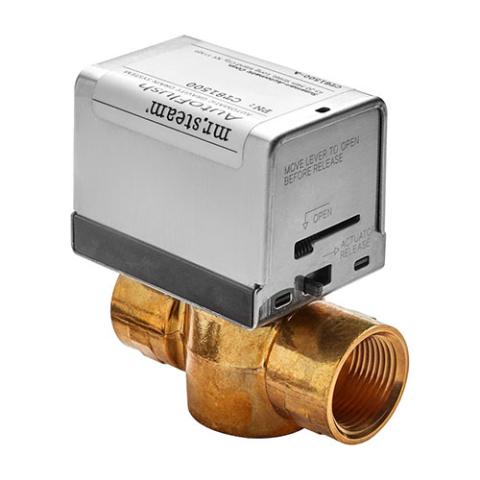

Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
-
Compact size offers more flexibility with room design and straightforward installation
-
All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
-
Designed for commercial applications that require continuous or near continuous use so they are available to use all day
-
Dimensions: 33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System)

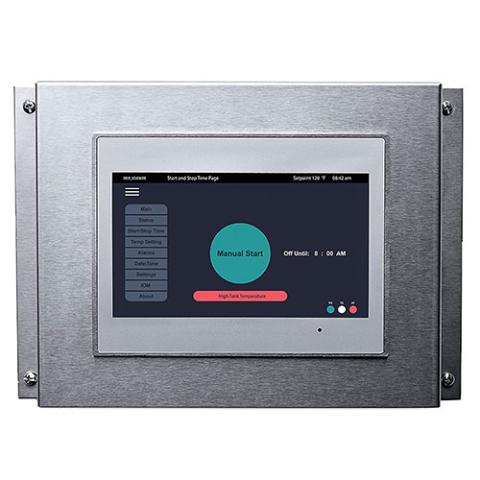

CX Control
-
7” color touch screen control with menu driven user interface
-
Easily set on/off time and view system status while the unit is running
-
Controls multiple CX Generators in series
-
Dimensions: 7.1"L x 1.6"W x 5.3"H

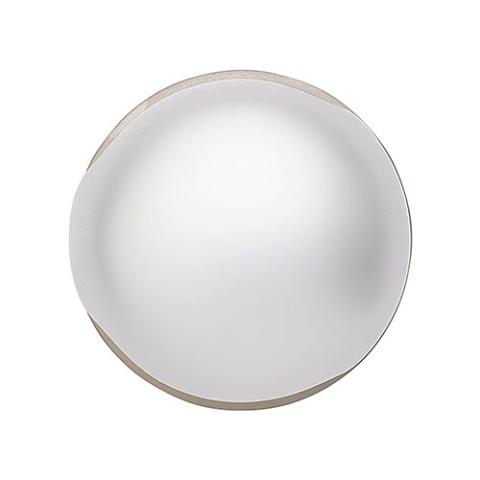

Commercial SteamHead
-
Complete with polycarbonate Acrylic Shield
-
Comes in a Polished Chrome finish
-
No assembly of moving parts required
-
Dimensions: 3.1”Diameter x 1.8”W

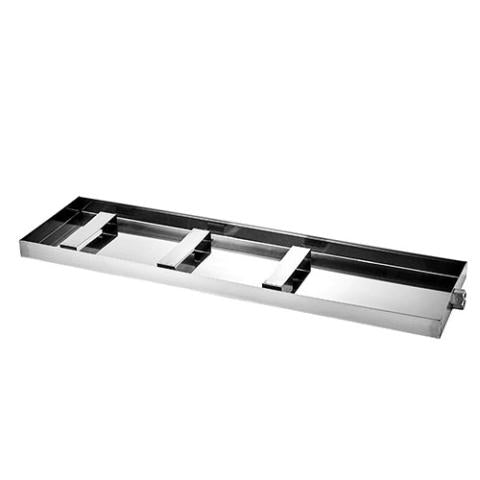

Condensation Pan
-
Protects against potential water leaks
-
Will trap and redirect the water to a predetermined area
-
Goes on a solid level surface with steam generator placed inside
-
Dimensions: 33"L x 1.5"W x 9"H
Includes
CX Generator
-
CX Generator
-
Installation and Operation Manual
-
1-Year Limited Warranty
CX Control
-
CX Control
-
1-Year Limited Warranty
Commercial SteamHead
-
Commercial SteamHead
-
1-Year Limited Warranty
Condensation Pan
-
Condensation Pan
-
1-Year Limited Warranty
Specifications
|
Model |
CX0360-CX1000 |
|
Construction Material |
Stainless Steel |
|
Installation Type |
Hardwired |
|
Kilowatt Rating |
9kW-24kW |
|
Wattage |
9000-24000 |
|
Water Supply Connection |
3/8" NPT |
|
Drain Connection |
1" NPT |
|
Safety Valve Connection |
3/4" NPT |
|
Minimum Cubic Feet |
0 |
|
Maximum Cubic Feet |
1000 |
|
Product Dimensions |
33.9"L x 7.9"W x 22"H (including factory-installed AutoFlush System) |
|
Shipping Weight |
60 lbs |
|
CX Control |
|
|
Product Dimensions |
7.1"L x 1.9"W x 5.3"H |
|
Commercial SteamHead |
|
|
Product Dimensions |
3.1"Diameter x 1.8"Depth |
|
Condensation Pan |
|
|
Product Dimensions |
33"L x 1.5"W x 9"H |
