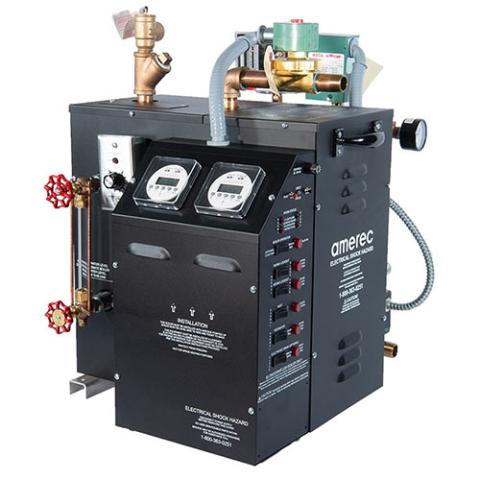

Amerec AI Series 12kW Commercial Steam Room Generator, 208V/1PH
Amerec AI Series 12kW Commercial Steam Room Generator, 208V/1PH is backordered and will ship as soon as it is back in stock.
Description
This 12-kilowatt electric steam room boiler can power up to two steam showers with dimensions up to 550 adjusted cubic feet (ACF).
The AI-12 steam bath generator is constructed of durable steel for years of efficient, reliable operation. The unit features an ASME-certified pressure vessel for instant steam, durable electronic components, electronic high limit pressure control systems, water level sight glass, 3-level water sensing system with low water cut-off, and a variety of other features.
Health clubs, day spas, hotels, wellness facilities, and other commercial sites rely on the Amerec AI-12 for around-the-clock use. Amerec AI series generators are designed for easy maintenance and automated operation. AI Series boilers are UL and cUL listed and comply with ASME requirements to ensure safety and quality.
The Amerec AI-12 commercial steam room boiler requires the use of a control for operation. Controls allow health club and facility managers to control features such as temperature and bathing duration. Select the available control with features that best suit your preferences.
We highly recommend the purchase of the available ADI Automatic Drain System with your AI-12 unit. The ADI Automatic Drain System automatically performs recommended daily draining and flushing of the boiler tank to reduce build-up of solids such as scale and sludge.
Features
- Pressurized vessel for instant steam
- Durable electronic components
- Low water cut-off with manual reset
- 3/4” drain port
- Room high limit temperature safety system
- Operating, electronic high limit pressure control systems
- Sight glass
- Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
- Alarm circuit panic button
- ASME safety valve
- ASME certified low-pressure operation vessel
Includes
- AI-12 steam boiler
- Two 3/4” NPT steam heads
- Installation and operation manual
- Limited warranty
Specifications
| Model | AI-12 |
|---|---|
| Shipping Weight | 125 lbs |
| Minimum Adjusted Cubic Feet | 301 |
| Maximum Adjusted Cubic Feet | 550 |
| Kilowatt Rating | 12.0 KW |
| Electrical Specifications | Electrical Chart |
| Water Supply Connection | 1/2" NPT |
| Generator Steam Line Connection | 3/4" NPT |
| Steam Head Connection | 3/4" NPT |
| Drain Connection | 3/4" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve | 15 PSIG |
| Control "Rough In" Cut Out | 2-1/8" x 3-1/4" |
| Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Generator Control Connection | 3 Position Terminal Block |
| Generator Control Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
| Width | 17-1/2" |
| Depth | 20-3/4" |
| Height | 23-1/4" |
